Underfloor linearly polarised ultra-low profile antenna

About

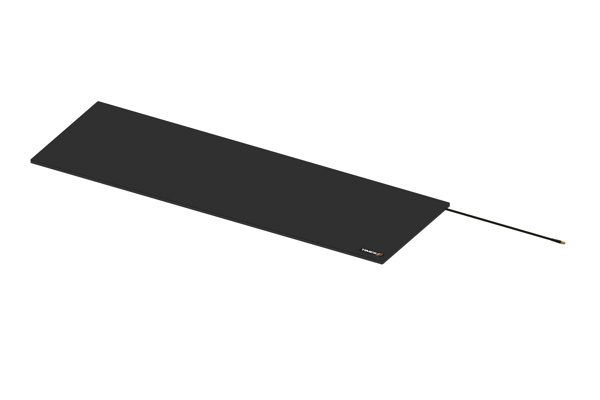

The SlimLine A6590L is an ultra-low profile linearly polarised antenna with a convenient doorway-sized footprint. Designed for underfloor mounting, this antenna has a footprint perfect for transforming a standard doorway into an intelligent access point.

Key Benefits:

Underfloor mountable - discreet
High-gain, constrained beam for localised reads

In retail settings for presence awareness, monitoring conference attendees, or doorway access point monitoring the A6590C is an ideal choice.

Specifications

Dimensions: 910 x 300 x 8mm
Frequency Range: 902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation: Linearly polarised
Gain: 10 dBi
Beamwidth: 72° in XZ-plane, 23° in YZ-plane
Environmental Rating: IP65
Connector Type: SMA

Downloads

Select All

A6590L_Datasheet

.pdf

764 KB

A6590L_STEP File 19 3 25

.step

780 KB

To find more resources for this product, Resources.
