A5530C Circularly Polarised Antenna
The A5530C is a circularly polarised ground mat antenna designed for tracking moving items, assets, and people, ideal for indoor and outdoor environments where side or overhead antennas aren’t practical.
The A5530C is a circularly polarised ground mat antenna designed for tracking moving items, assets, and people, ideal for indoor and outdoor environments where side or overhead antennas aren’t practical.
Engineered for floor or ground-level installations, the A5530C delivers high-performance, orientation-agnostic reads, making it ideal for race timing, conference attendee tracking, and retail entrance/exit monitoring applications. Its robust construction, IP66 rating, and 12 mm slim profile allow it to withstand heavy foot traffic (distributed load support of up to 500kg), cleaning, and challenging environmental conditions.
Designed for easy deployment with minimal disruption, the A5530C creates a reliable read zone without the need for overhead structures or complex mounting systems.
The mat antenna includes an SMB-SMA adapter for increased cable protection and easy replacement. With its plug-and-play capability, this antenna is incredibly versatile, and the integrated housing simplifies setup requirements.
Key Benefits:

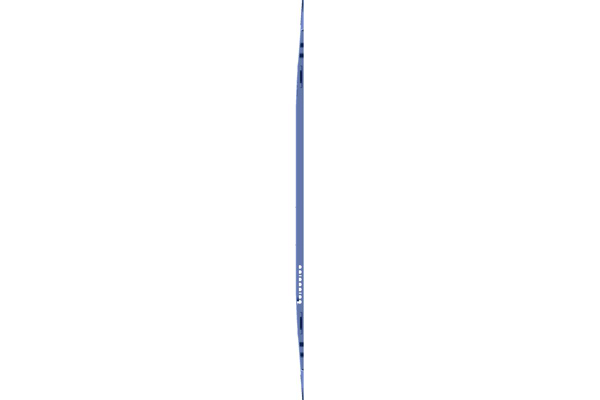

Ultra-low profile (12 mm) for unobtrusive floor installation
Circular polarisation for consistent tag reads regardless of orientation
IP66-rated for durability in indoor and semi-outdoor environments
Ideal for race timing, event tracking, logistics, and retail entrances
