A8065V Vertically Polarised Door Frame Antenna

Specialised Antennas
Doorway Antennas
A8065 Series
Offices
Healthcare
Events
Conferences
Data Centre
Access Control
Inventory Tracking
People Tracking
Asset Tracking

The A8065V is the vertically linear antenna in our A8065 series, engineered for seamless integration into doorways for situations where an overhead antenna is not an option. These antennas turn a doorway door frame into a smart data capturing location, providing visibility on the movement of high value assets to your business.

About

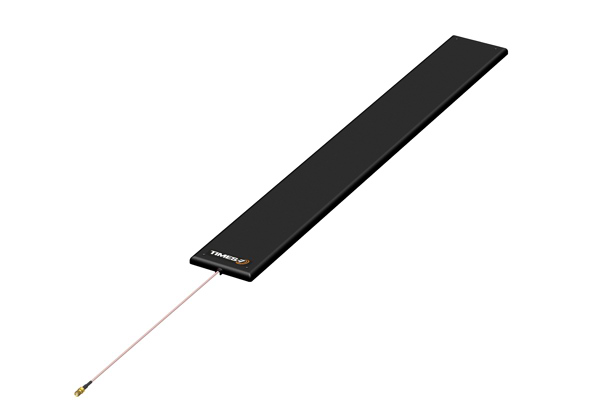

The SlimLine A8065V is an ultra-low profile linear flat panel UHF antenna with no compromise on spatial dimensions. This antenna easily transforms existing doorways into an RFID portal or read point for spaces where an overhead antenna is not feasible.

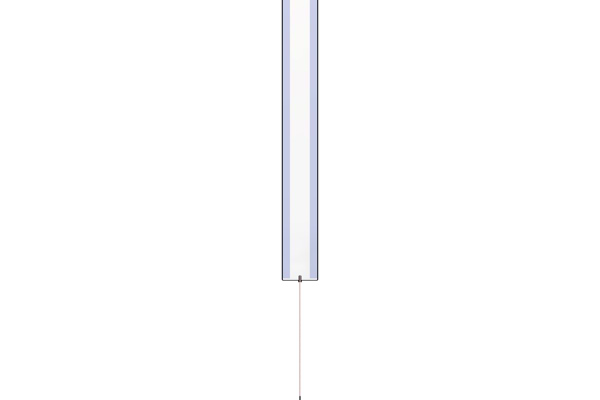

Designed with integrated mounting holes and included adhesive tape for mounting versatility, the A8065V can work as a left and/or right mounted antenna within its intended doorway use case.

Key Benefits:

  • Doorway sized
  • Easy mounting options

This antenna is ideal for use in asset and people tracking solutions across the healthcare and event industries, with particular suitability for inventory management in office spaces.

Specifications

Dimensions
700 x 90 x 10.5mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Linearly polarised
Gain
7.5 dBi
Beamwidth
25° in XZ-plane, 120° in YZ-plane
Environmental Rating
IP54
Connector Type
SMA

Downloads

STEP File
A8065V_ STEP File 20 3 25
.step
1000 KB
A8065_Combo Datasheet
.pdf
798 KB

To find more resources for this product, Resources.
