The A8060 is a linearly polarized antenna, engineered for seamless integration into doorways for situations where an overhead antenna is not an option. This antenna turns a door frame into a smart data capturing location, providing visibility on the movement of high value assets throughout your premises.

About

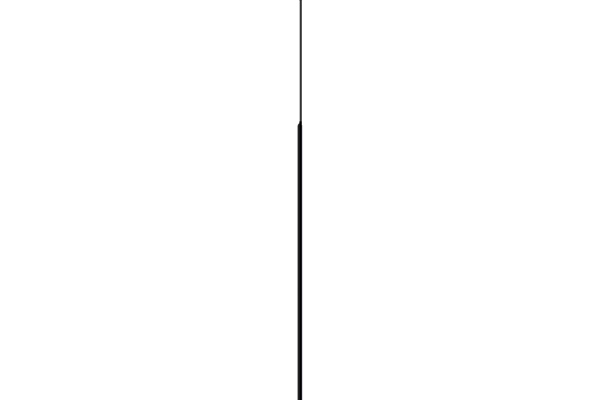

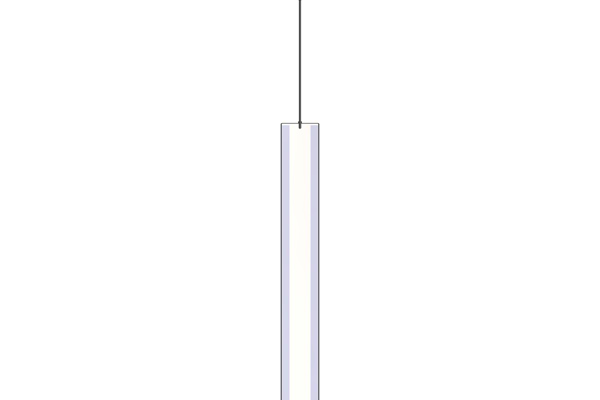

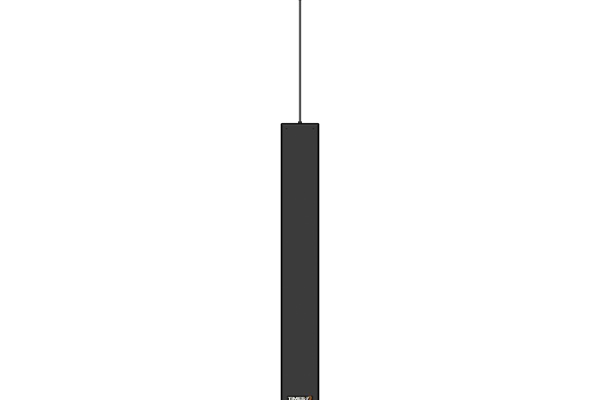

The SlimLine A8060 is an ultra-low profile linear flat panel UHF antenna with no compromise on spatial dimensions. This antenna easily transforms existing doorways into an RFID portal or read point for spaces where an overhead antenna is not feasible.

Designed with integrated mounting holes and included adhesive tape for mounting versatility, the A8060 can work as a left, right and/or top mounted antenna within its intended doorway use case.

Key Benefits:

  • Doorway sized
  • Easy mounting options

This antenna is ideal for use in asset and people tracking solutions across the healthcare and event industries, with particular suitability for inventory management in office spaces.

Specifications

Dimensions
650 x 88 x 10.5 mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Linearly polarised
Gain
5 dBi
Beamwidth
110° in YZ-plane, 30° in XZ-plane
Environmental Rating
IP54
Connector Type
SMA

Downloads

A8060_Datasheet
.pdf
710 KB
STEP File
A8060_STEP File 20 3 25
.step
1005 KB
