A6031 Circularly Polarised Antenna

Far-field Antennas
Offices
Retail
Hospitality
Medical
Healthcare
Libraries
Supply Chain
Military
Access Control
Asset Tracking
Cabinets
Document Tracking

Not Recommended For New Designs (NRFND) - see B6031 Circularly Polarised Antenna

About

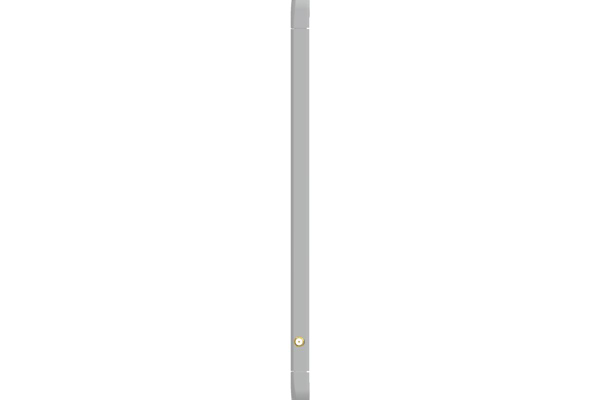

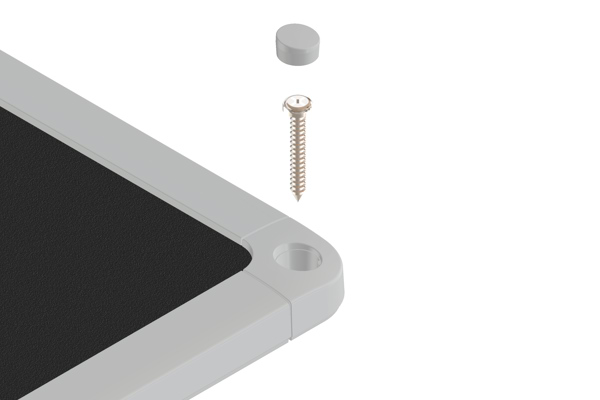

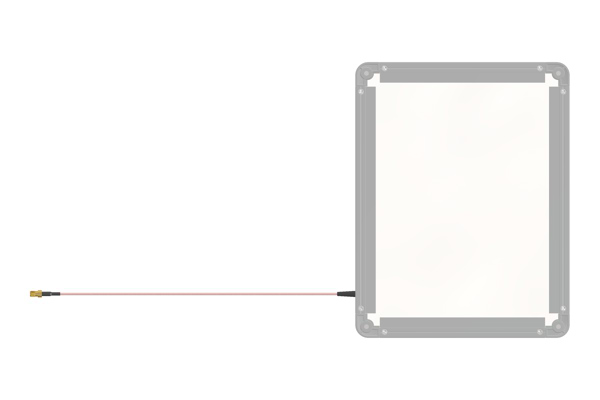

The A6031 is a low profile, circularly polarised RAIN RFID antenna. With similar dimensions and weight to a Tablet PC, and either flush mounting via pre-drilled mounting holes or VESA bracket mounting via its mounting plate accessory, this antenna is a versatile choice.

For new designs and solutions, we'd recommend the B6031, an improved iteration of the technology displayed in the A6031.

Key Benefits:

  • Typical read distance of 4-5m - create a focused read area.
  • Multipurpose - ideal for a wide variety of different applications.

With it's picture frame housing and mounting options, the A6031 can effortlessly integrate into any office or retail setting.

Specifications

Dimensions
274 x 213 x 12.2mm
Frequency Range
902-928MHz (FCC); 865-868MHz (ETSI)
Polarisation
Circularly polarised
Gain
4 dBiC
Beamwidth
80° in both planes, Symmetrical
Environmental Rating
IP65
Connector Type
SMA

Downloads

A6031_Datasheet
.pdf
494 KB
A6031_Mechanical Drawing and Mounting Bracket RevD 6 5 25
.pdf
79 KB

To find more resources for this product, Resources.
