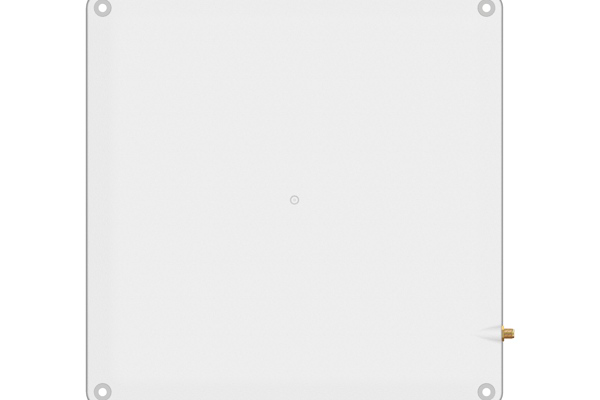

The A5010 is a compact, high-gain far-field RFID antenna, offering reliable wide-area performance, IP67-rated durability, and a slim profile — the ideal general-purpose solution for both indoor and outdoor applications.
The A5010 is a versatile, high-performance far-field RAIN RFID antenna from Times-7’s flagship range. With its ultra-slim 14mm profile, symmetrical beam pattern, and integrated metal backplate for extra durability, it's built for reliability across a wide range of applications—from shelving and cabinets to dock doors and conveyor systems.
Key Benefits:
Engineered for efficiency and adaptability, the A5010 is the ultimate all-purpose antenna for scalable RFID solutions.
Compact, rugged, and built for performance, the A5010 delivers powerful circular polarisation in a sleek 250mm square footprint. With IP67 protection, it’s ready for permanent outdoor use and demanding indoor environments.
Want to add more ruggedness and support to your A5010 antenna? Some industrial applications require the antenna connector to be protected from hits due to moving machinery in the work environment. To provide extra-ruggedness, we have designed a Connector Protection Backplate.
The Connector Protection Backplate can be flush or VESA mounted. To install the backplate, attach it to the rear side of the antenna. The backplate bends over the connector, held on via the mounting holes.
The backplate can be used with right-angled and straight cables.
