Technical Specifications and Installations tips for shelving antenna: A spotlight on A7030C

The main purpose of this blog is to provide a comprehensive guide on the technical specifications and installation tips for the SlimLine A7030C shelving antenna. This includes highlighting its benefits, installation methods, and addressing common questions about its application. The blog aims to educate and inform potential users, particularly those wanting to implement smart shelving solutions using this specific antenna.

Blogs

Times-7

March 20, 2025

Topics

A7030C

Related products:

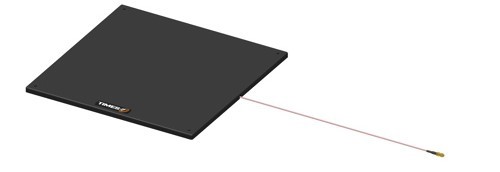

A7030C Circularly Polarised Antenna
A7030C Front View

Overview

Smart shelving solutions are revolutionising the way businesses manage and track inventory (Kanban systems are an example of this). By utilising advanced RFID technology, these systems offer real-time tracking and management, making them indispensable in:

  • Retail applications (smart shelving)
  • Healthcare applications (pharmaceutical refrigeration)
  • Industrial applications (warehouse Kanban systems) and various other industries

This blog will delve into the technical specifications and installation tips for the SlimLine A7030C multi-purpose antenna, part of Times-7's shelving antenna range.

Introducing the A7030C

The A7030C is a versatile, ultra-low-profile antenna designed for various RFID deployments.

Its durable design makes it ideal for embedding in smart cabinets or integrating with shelving systems.

The key benefits of the A7030C include:

  • Excellent near-field performance
  • The ability to create a confined read zone at low-medium power
  • Interconnected feet accessories allow for array configurations

Key Technical Specifications

Dimensions 300 mm x 300 mm x 8.5 mm
Frequency Range 902-928MHz (FCC); 865-868MHz (ETSI)
Connector Type SMA female standard
Antenna Gain 6dBi Circular
Radome Material Durable ABS

Installation tips

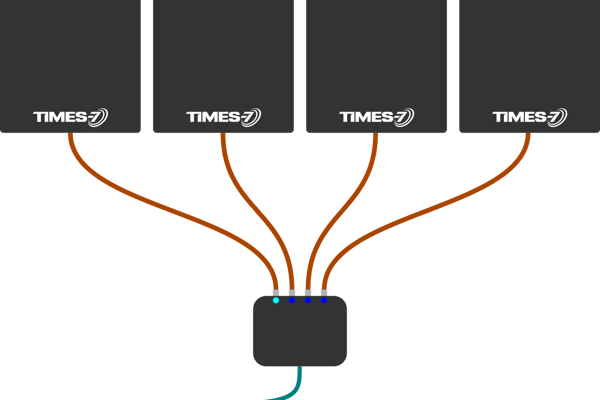

Flat Render 4 Port Line

Ensure you have the A7030C antenna and a UHF reader, either connected directly to the antenna or via hubs for multiple antennas.

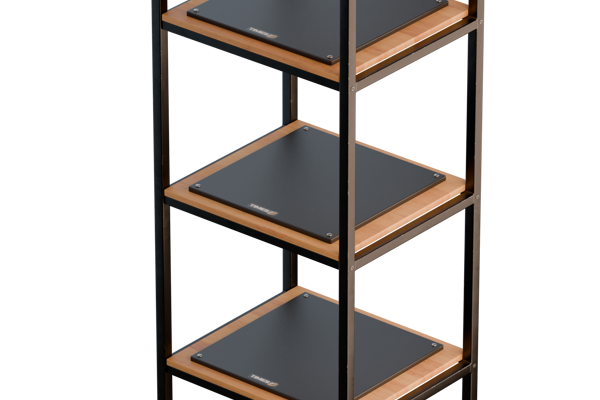

Stack Ontop

Metal shelves can affect the read zone. Consider material and placement carefully.

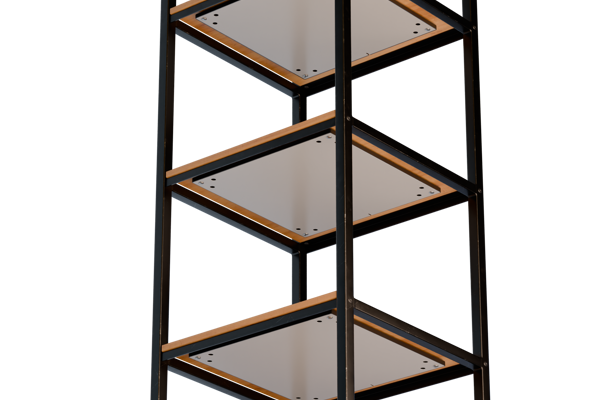

Stack Under

Position the antenna to cover the intended tracking area. Overhead placement works best for wide coverage, while placing it under items helps confine the read zone. Optimise item density and tag configuration to avoid dead spots or stray reads.

Installation Guide

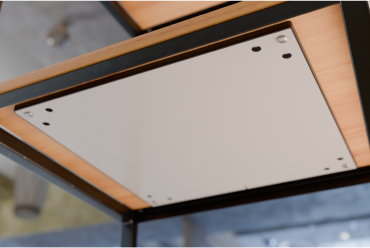

Mounting option 1: Flush / screwed onto the shelf

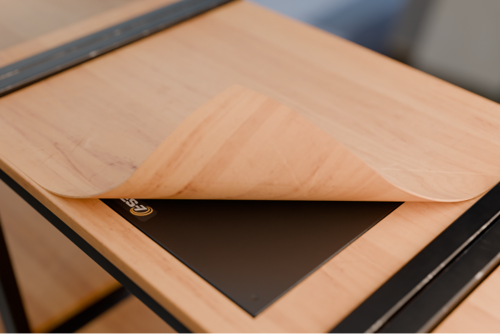

Mounting option 2: Built into shelf

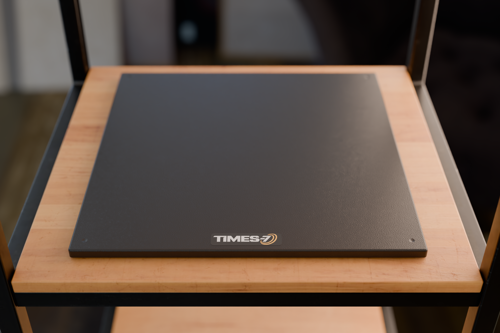

Mounting option 3: On shelf placement

Times-7 A7030 Antenna Installation - On shelf placement

Connecting the antenna:

Attachment: Secure the SMA female connector to the corresponding cable, ensuring a tight fit to prevent signal loss.

Setup: Connect the RFID reader to the antenna and calibrate the system for optimal performance.

Maintenance: Regularly check connections and clean the antenna surface to maintain efficiency.

FAQs for setting up a smart shelving system

Compatibility with existing infrastructure

Q: Will the new system integrate seamlessly with existing shelves, cabinets, and other infrastructure?

A: The SlimLine A7030C’s ultra-low profile and flexible mounting options make it easy to integrate into a variety of setups, ensuring compatibility with most existing systems.

Installation Complexity

Q: How difficult and time-consuming will the installation process be?

A: With its interconnected feet accessories and easy mounting options, the SlimLine A7030C is designed for straightforward installation. Installation guides are available to assist with the process.

Reliability and Durability

Q: Will the system be reliable and durable enough to withstand the working conditions?

A: The A7030C antenna is IP54 rated and made with a durable and fire-retardant ABS radome. It is designed for consistent and continuous operation.

System Scalability

Q: Can the system be scaled to accommodate future growth or changes in inventory management needs?

A: The design of the A7030C and accessories allows for easy physical scalability. Additional antennas can be added to expand coverage as needed up to the limit of your readers.

Contact us

The SlimLine A7030C antenna is an exceptional choice for businesses looking to implement smart shelving solutions. To talk to someone from our sales team click below.

Contact us
